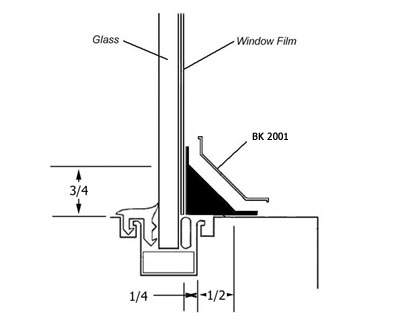

BK2001
 |
BK2001
BK 2001
Commercial storefront or an application where a
large 3/4 by 3/4 silicone bead is specified. Usually
for bomb blast. The
frame and glass are at 90° or perpendicular to
each other. |
 |

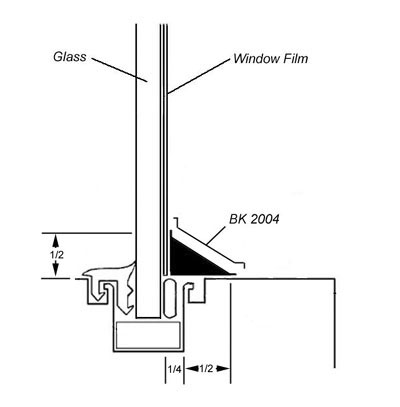

BK2004
 |
BK2004

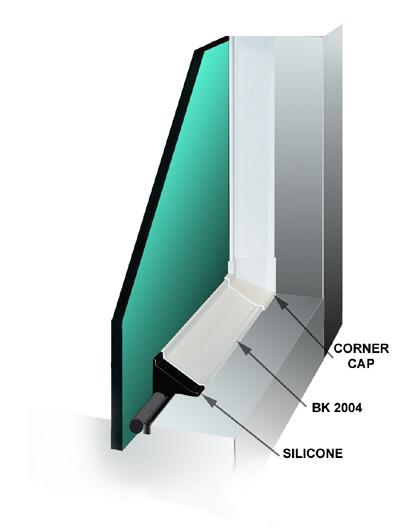

BK 2004
Commercial storefront or an application where a
1/2" silicone bead is specified. Used mainly for
anti intrusion and hurricane installations. The
frame and glass are at 90° or perpendicular to
each other. |
 |

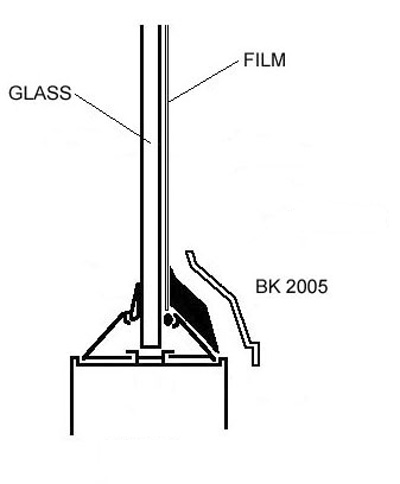

BK2005
 |
BK2005
BK 2005

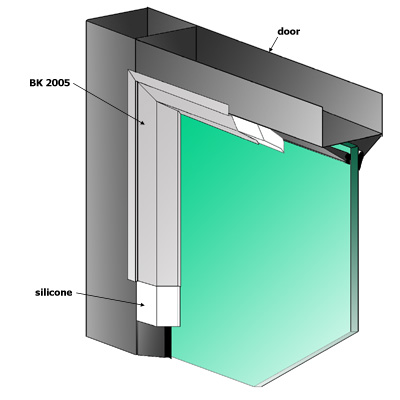

Commercial storefront door with angled glass retention
moldings like Kawneer style doors. |
|
|
BK 2003 display sample Patio door (white)
 |

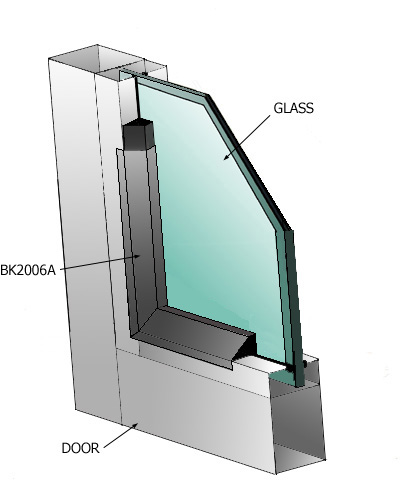

BK 2006

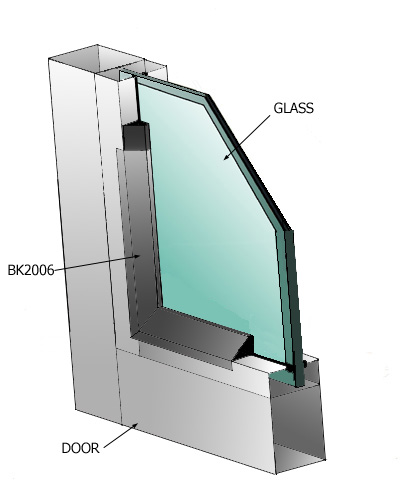

Commercial storefront door with square glass retention
moldings.
(perspective drawing in progress)
|
 |

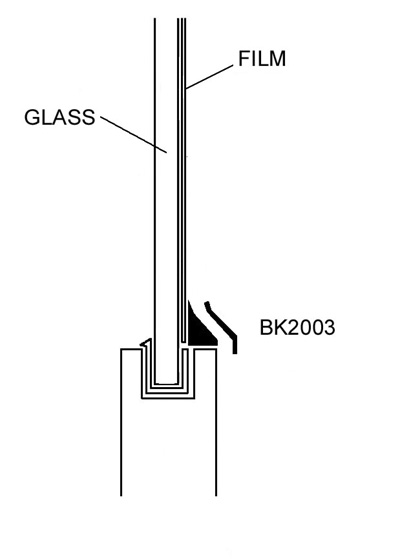

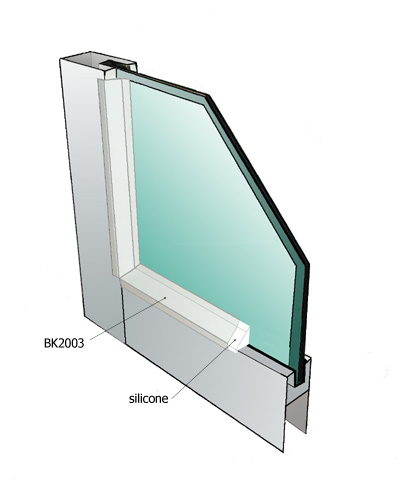

BK 2003
 |
BK 2003
Residential patio door with squared or
rounded frame all around
Also used for vinyl windows |
 |
BK 2003
 |

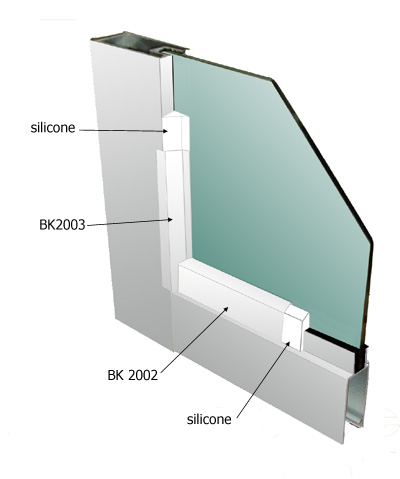

BK 2003 and BK 2002
combination patio door
Residential patio door with squared sides and
flush top and bottom rails |
 |
Mitered corner template for BK2001
 |

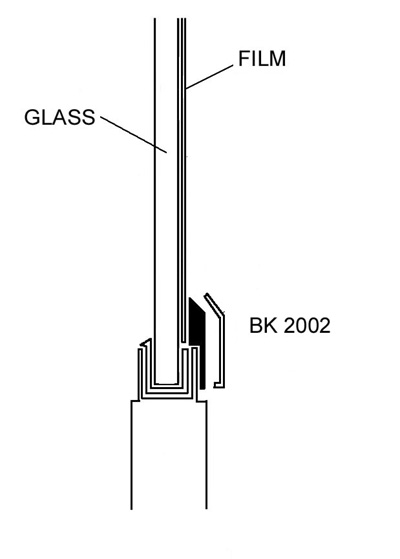

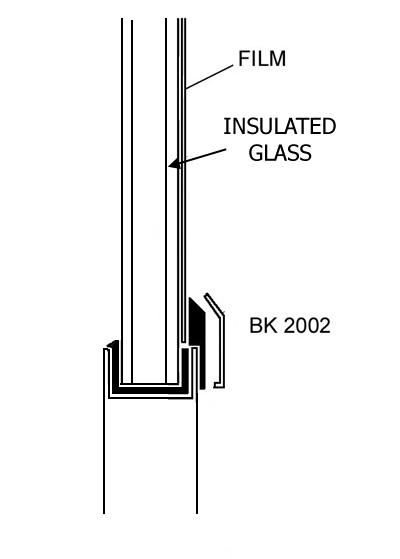

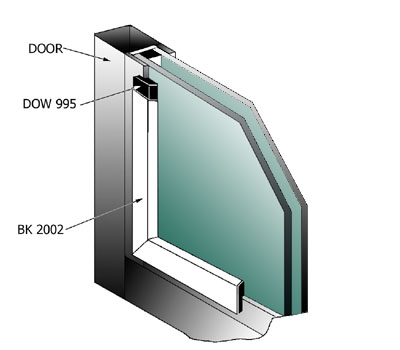

BK 2002
Residential patio door with insulated glass and
flush frame |
|
|
Dow Corning 995
|

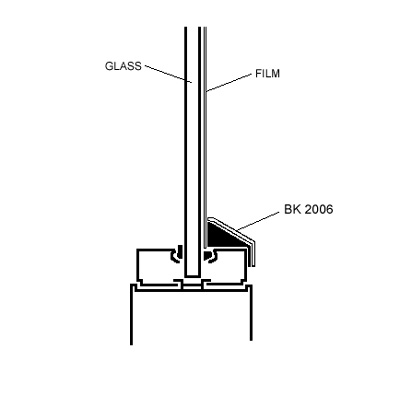

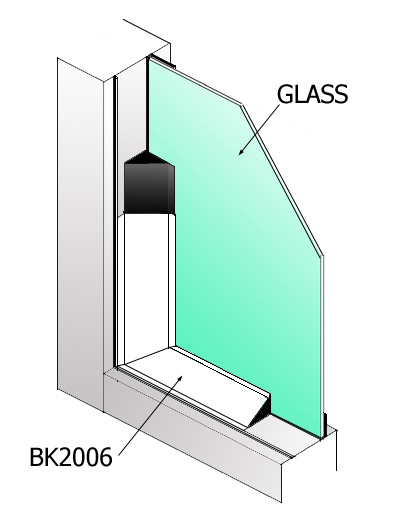

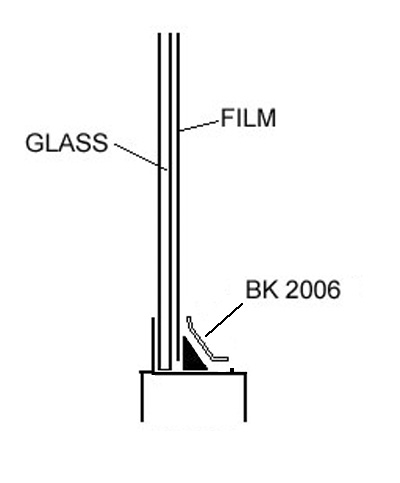

BK 2006
Residential window with interior plastic stops
usually the original stops are cracked and
degraded The BK 2006 can replace these
moldings
(perspective drawing in progress) |
 |
Baker rod
|

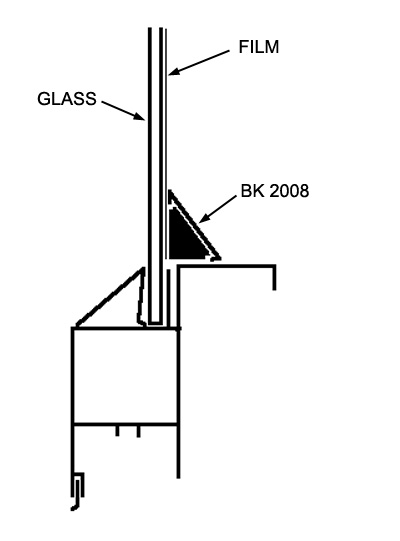

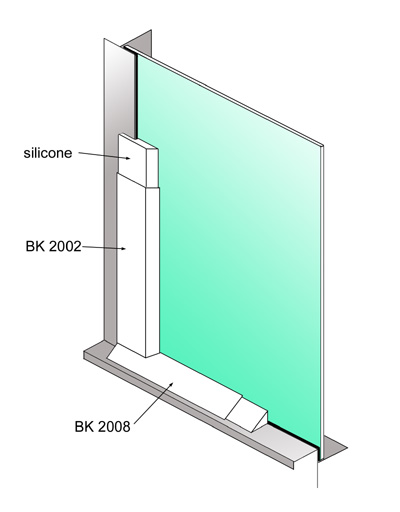

BK 2008
Residential window usually for
bottom of window where glass is 90' to the
frame
|
 |
Vinyl and backer rod roller
|

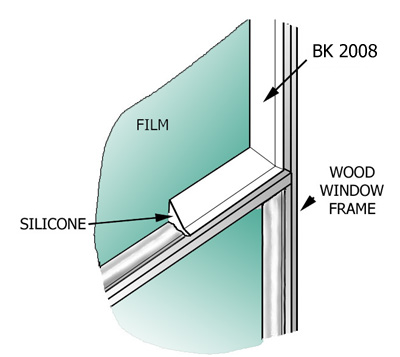

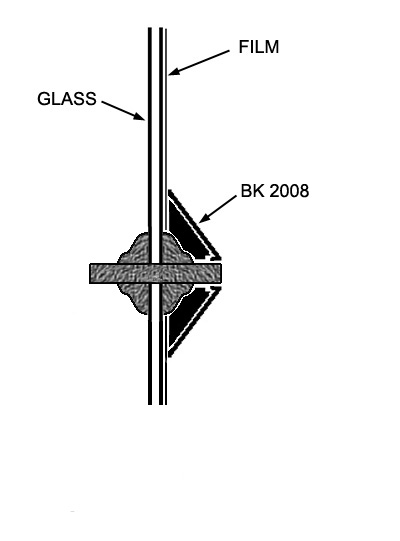

BK 2008
Wood framed window or French door
(detail drawing in progress) |
 |
Nitrile gloves
|

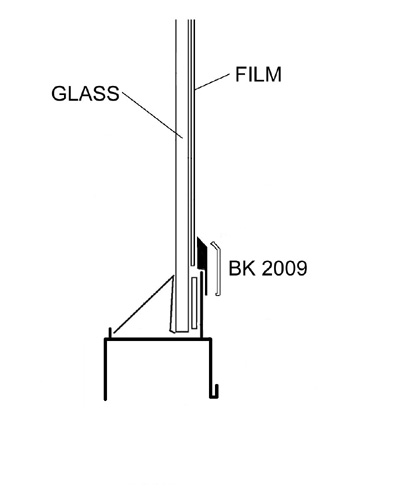

BK 2009
Residential single hung window with limited
space between upper and lower sash |
|
|
